TECHNICAL DATA
|
2.24 kW/3 HP |
|
2850 rpm |
|
Two-cylinder, piston, oil-cooled |
|
250 l/min. |
|
206 l/min. |
|
8 bar |
|
0.2 m³/min. |
|
45 l |
|
36.55 kg |
DETAILED DESCRIPTION

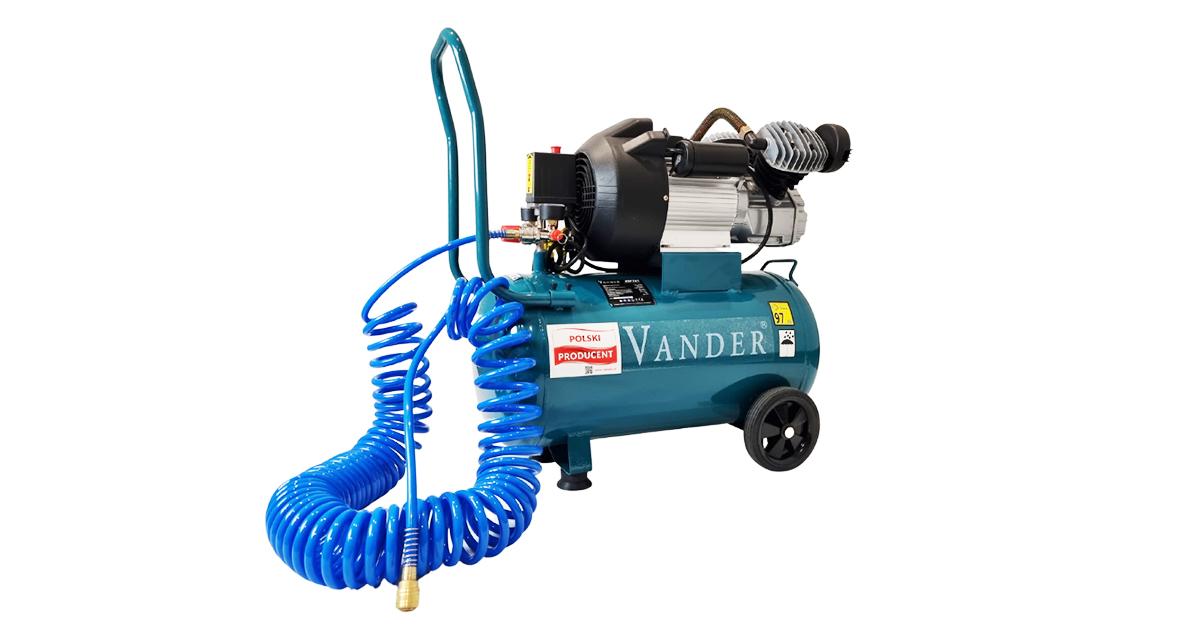

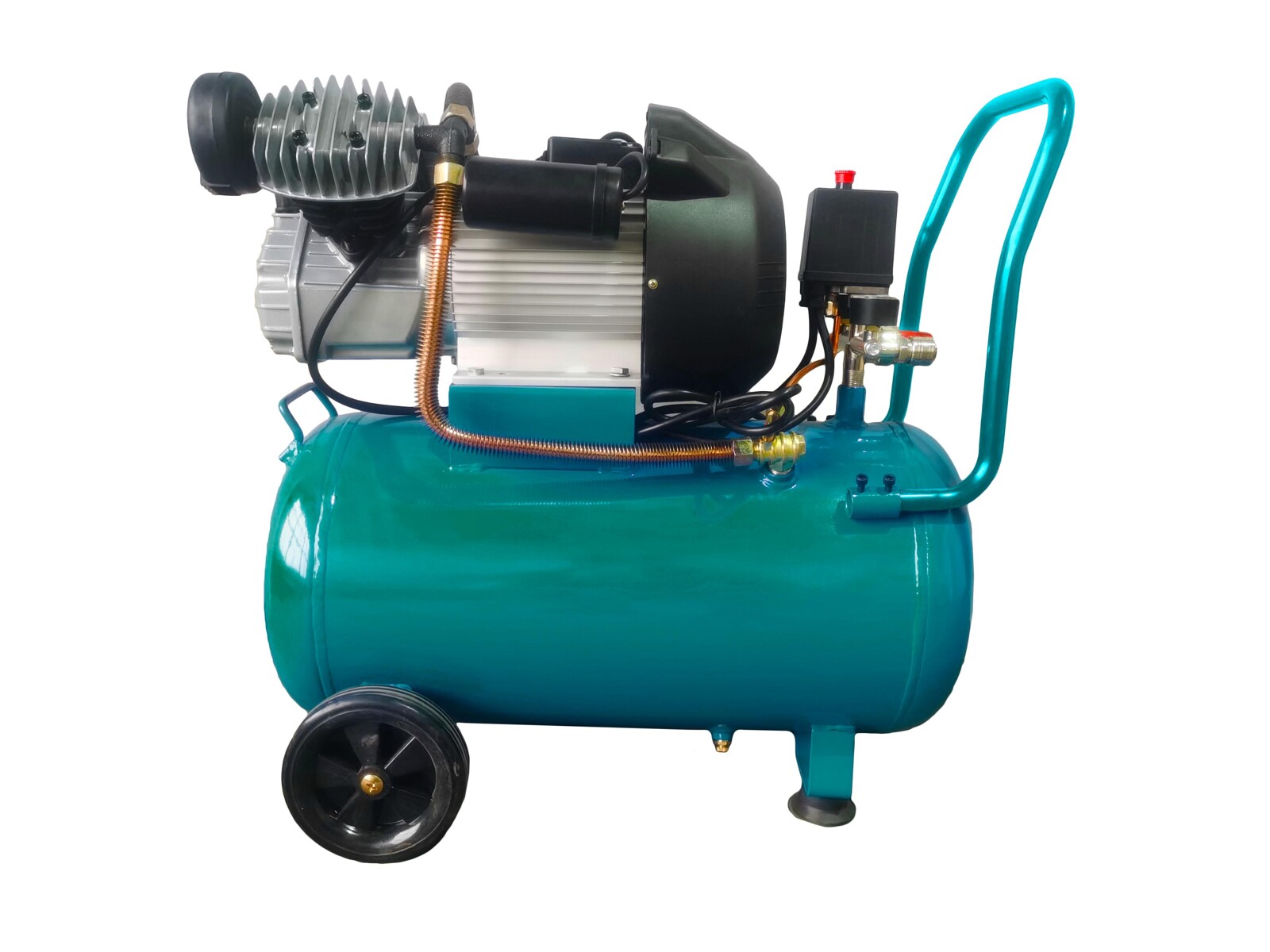

The Vander VSP761 is a two-piston oil compressor with a 45-litre tank, ideal for powering light pneumatic tools, pumping and blowing. Equipped with a 2.2 kW induction motor, it achieves a maximum pressure of 8 bar and a capacity of 206 l/min at the outlet. Two pressure gauges allow you to monitor the pressure in the tank and at the outlet.
| Weight | 40,2 kg |
|---|---|
| Manufacturer | Vander |
| Power | 2.24 kW/3 HP |
| Rotational speed | 2850 rpm. |
| Type | Two-cylinder, piston, oil-cooled |
| Performance | 250 litres per minute. |
| Effective efficiency | 206 litres per minute. |
| Maximum pressure | Eight bars |
| Tank pumping capacity | 0.2 m³/min. |
| Cylinder capacity | 45 litres |
